Place of Origin:
China
Brand Name:
FOTON
Certification:
ISO/FCC/SGS
Model Number:
AXH5181

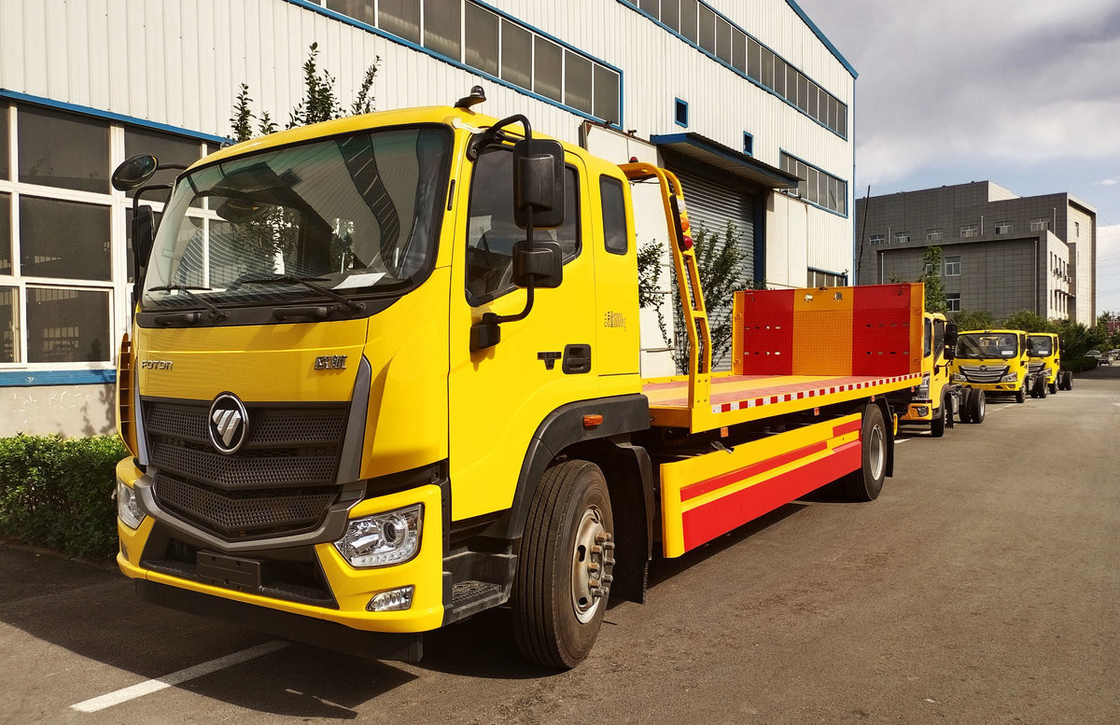

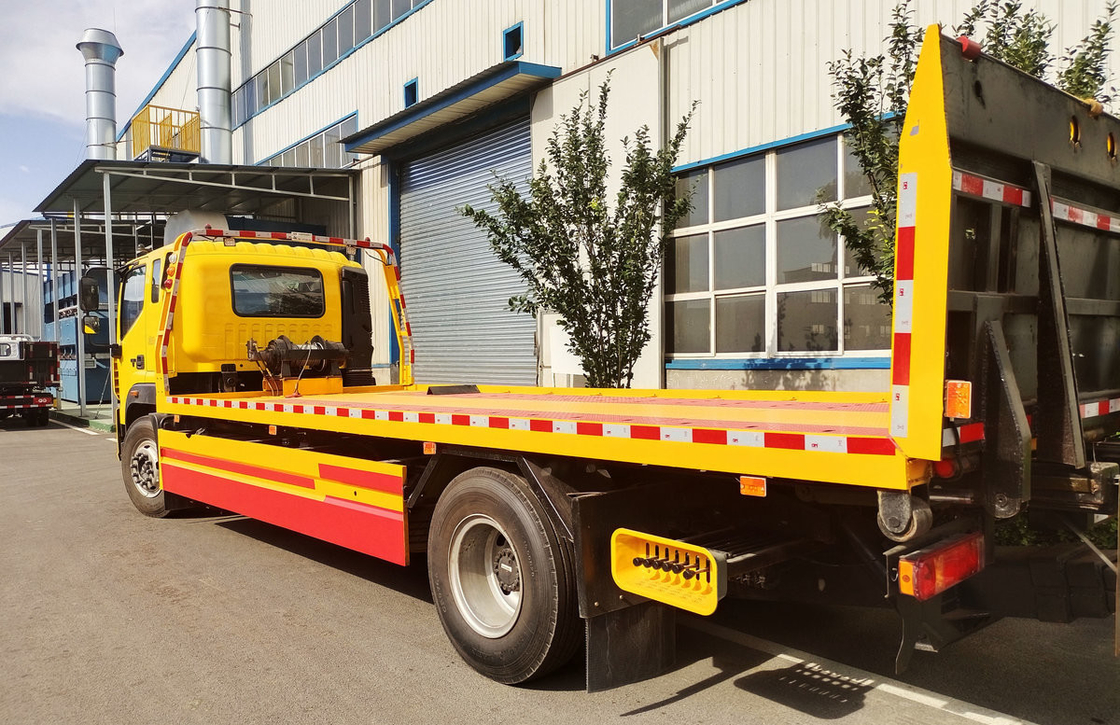

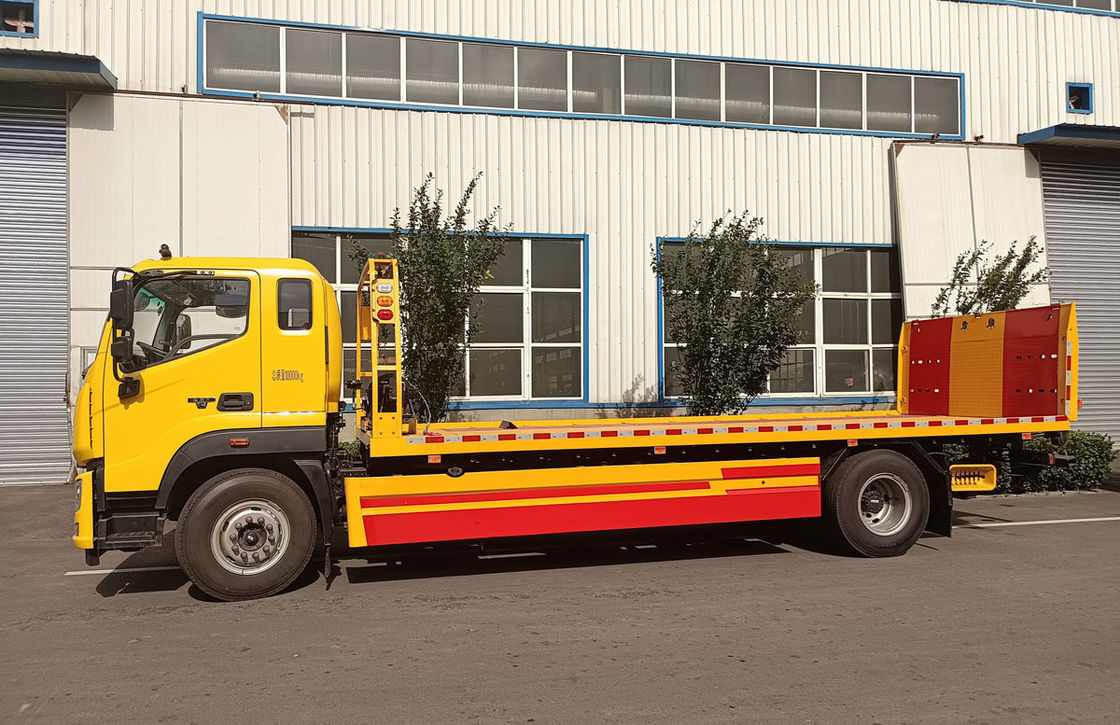

Used Work Trucks 4×2 Drive Mode 230hp Foton Wrecker Truck Flat Roof
Description:
For road obstacle removal, the special device is a flat plate, lifting the arm; when the number of passengers is 2, the lifting weight: 7370kg, 7570kg. The material of the side protection device is Q235, and the connection method is welding connection; the rear lower protection device is replaced by the support arm of the working device, and the height of the lower edge from the ground is 470mm.
Service we can provide:
Used Work Trucks, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.Used Work Trucks
| AXH5181 PARAMETER | |||
| Product Name | USED FOTON TRUCK | Brand | FOTON |
| Origin | China | Model | AXH5181 |
| Year | 2017 | Type | SPV |
| Total Weight | 18000(kg) | Curb Weight | 10300(kg) |
| Seats | 2 | Max speed | 100km/h |
| Type of Fuel | Diesel | Length | 10410mm |
| Weight | 2550mm | Height | 2810mm |
| Overall Dimensions(L*W*H) | 10410*2550*2810mm | Used Work Trucks | Used Work Trucks |
| ENGINE PARAMETER | |||
| Engine Model |
B6.2NS6B210
|
Engine Power | 154/209kw |
| Displacement | 6200 | Emission Standard | EURO VI |
| CHASSIS PARAMETERS | |||
| Number of Spring Pieces |
10/8+8,10/10+8,3/4+3 10/- |
Number of Tire | 6 |
| Tire Type | 10.00R20 18PR,11R22.5 18PR,275/80R22.5 18PR | Approach/Depature Angle | 18/10(°) |
| F/R Overhang | 1270/3340(mm) | Front Track | 2008(mm) |
| Rear Track | 1860(mm) | Number of Axis | 4 |
| Axial load | 6500/11500 | Wheelbase | 5750(mm) |
