Place of Origin:
China
Brand Name:
Shacman
Certification:
ISO/FCC/SGS
Model Number:
CLY5314

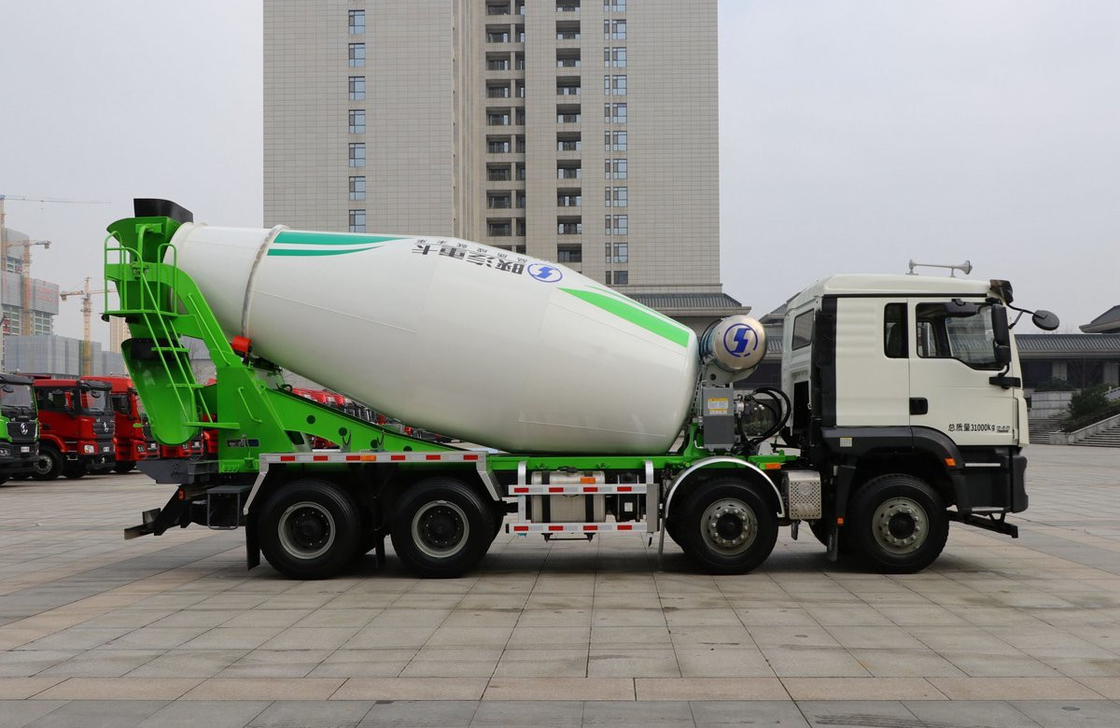

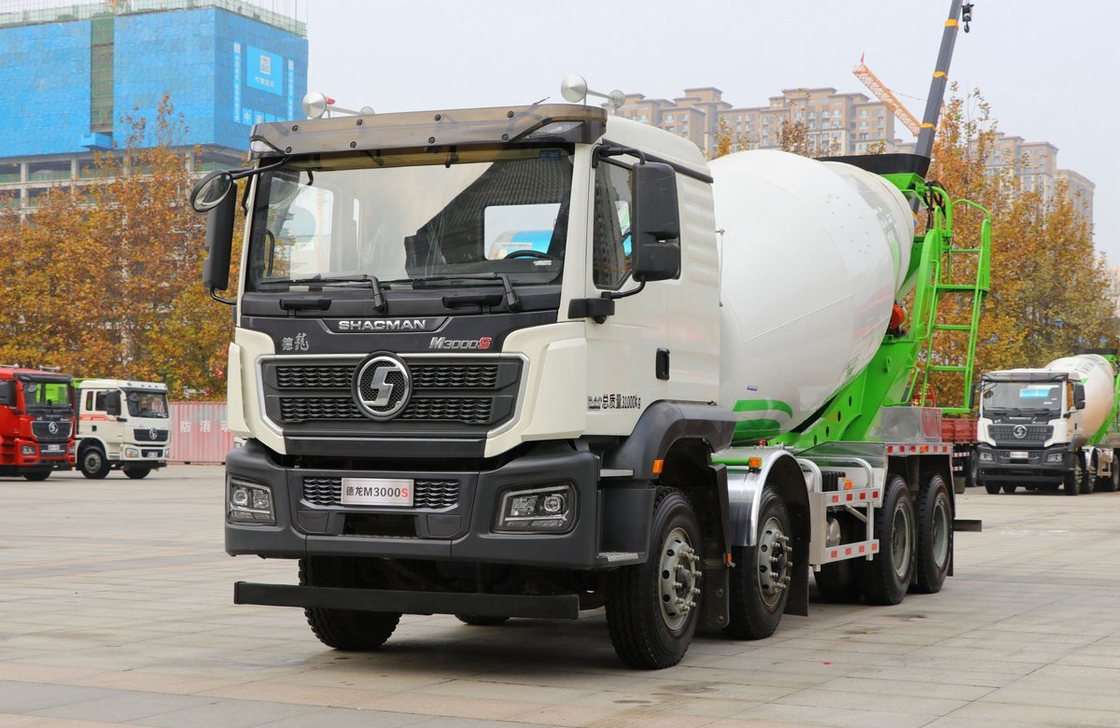

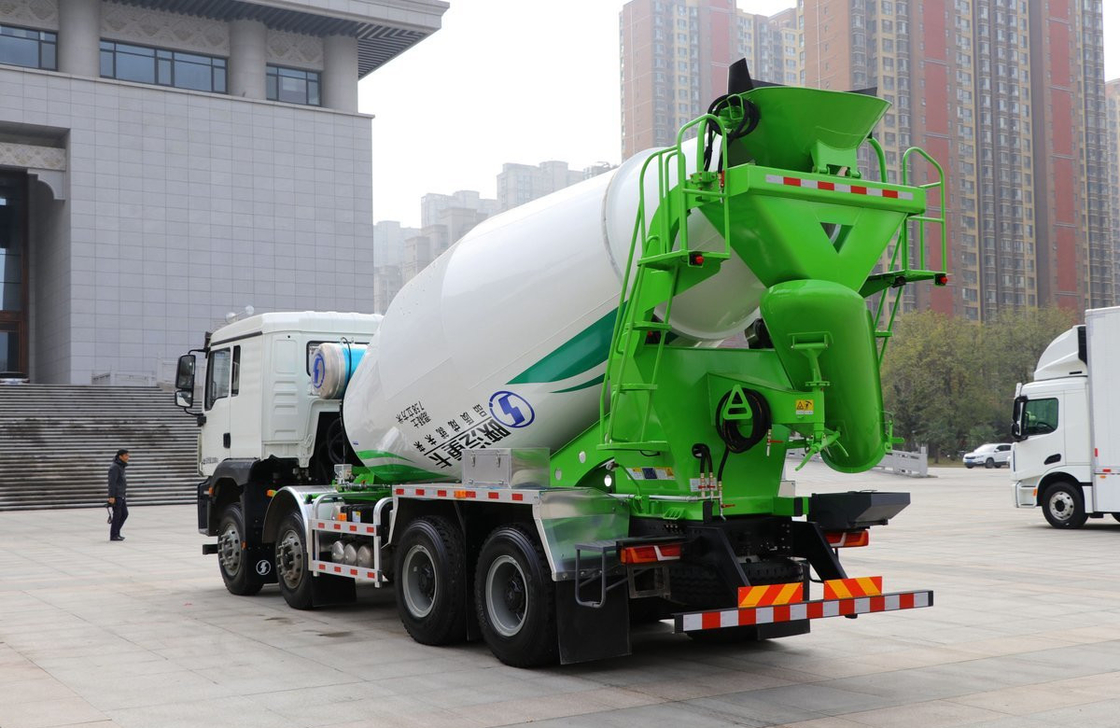

Concrete Mixers With Truck Shacman M3000 Model 12 Wheels 7.5 Cubic Tanker Single Sleeper
Description:
chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing
ladder,air pressure water supply device. half cab(with sleeping berth), allowable 3 passengers, Four position image, multi-function steering wheel, airbag seat, cruise control, electric window regulator, electric cab lifting, air conditioner, ABS (4S/4M).
Service we can provide:
yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc. Concrete Mixers With Truck
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.Concrete Mixers With Truck
| CLY5314 PARAMETER | |||
| Product Name | USED Shacman TRUCK | Brand | Shacman |
| Origin | China | Model | CLY5314 |
| Year | 2020 | Type | SPV |
| Total Weight | 31000 (kg) | Curb Weight | 14300(kg) |
| Seats | 2 | Max speed | 80km/h |
| Type of Fuel | Diesel | Length | 10200mm |
| Weight | 2520mm | Height | 3995mm |
| Overall Dimensions(L*W*H) | 10200*2520*3995mm | Concrete Mixers With Truck | Concrete Mixers With Truck |
| ENGINE PARAMETER | |||
| Engine Model |
WP8.340E51
|
Engine Power | 250/340kw |
| Displacement | 7800ml | Emission Standard | EURO 5 |
| CHASSIS PARAMETERS | |||
| Number of Spring Pieces |
3/3/5,10/10/12,10/10/10, 13/12,4/4/5,2/2/4,3/3/4, 14/14/12 |
Number of Tire | 12 |
| Tire Type | 295/80R22.5 16PR,295/80R22.5 18PR,11.00R20 16PR,11.00R20 18PR,12.00R20 16PR,12.00R20 18PR | Approach/Depature Angle | 10/18(°) |
| F/R Overhang | 1525/2475(mm) | Front Track | 2036/2036(mm) |
| Rear Track | 1860/1860(mm) | Number of Axis | 4 |
| Axial load | 6500/6500/18000(kg) | Wheelbase | 1800+3000+1400(mm) |
