Place of Origin:
China
Brand Name:
Sinotruck
Certification:
ISO/FCC/SGS
Model Number:
ZZ5317

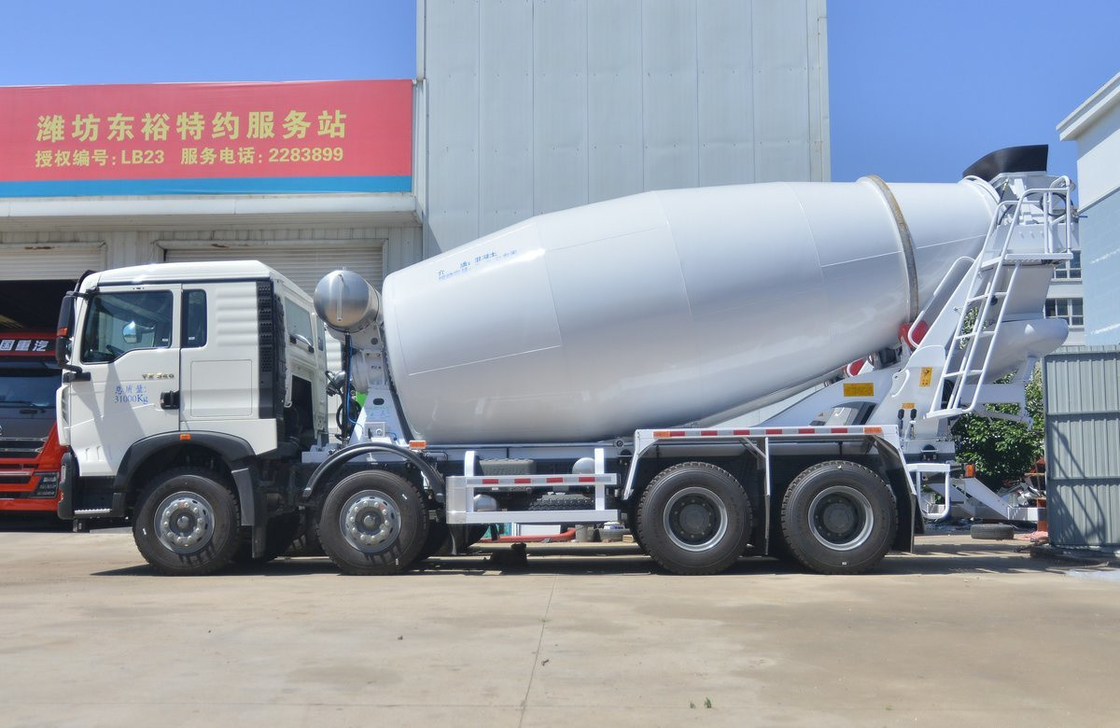

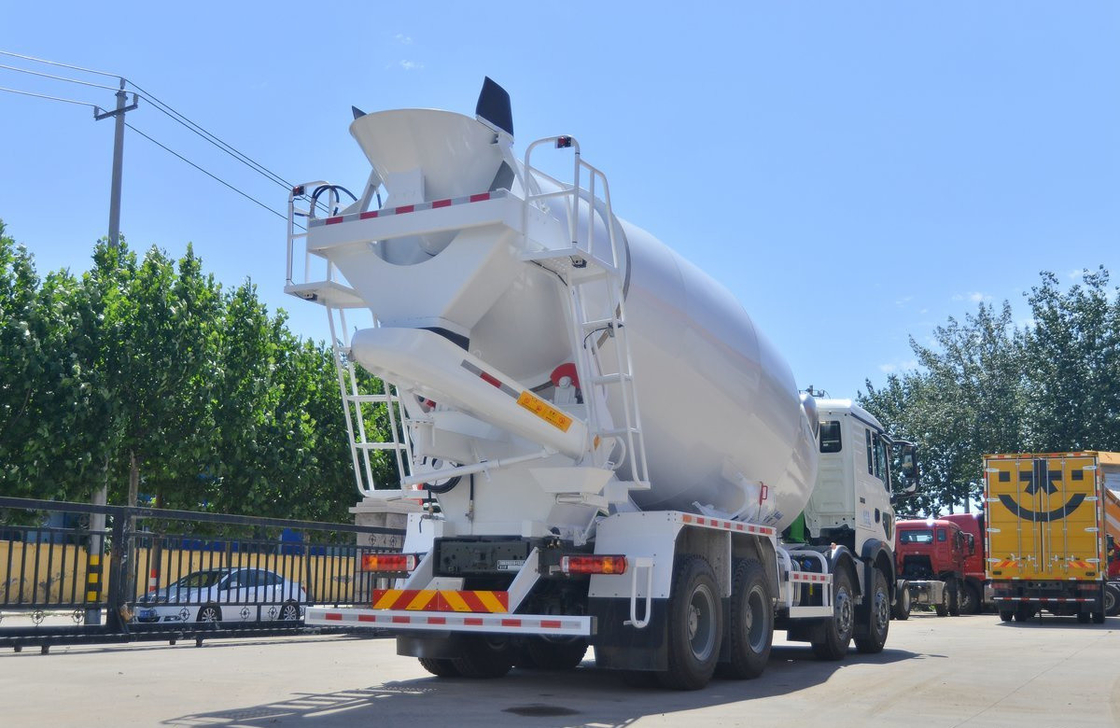

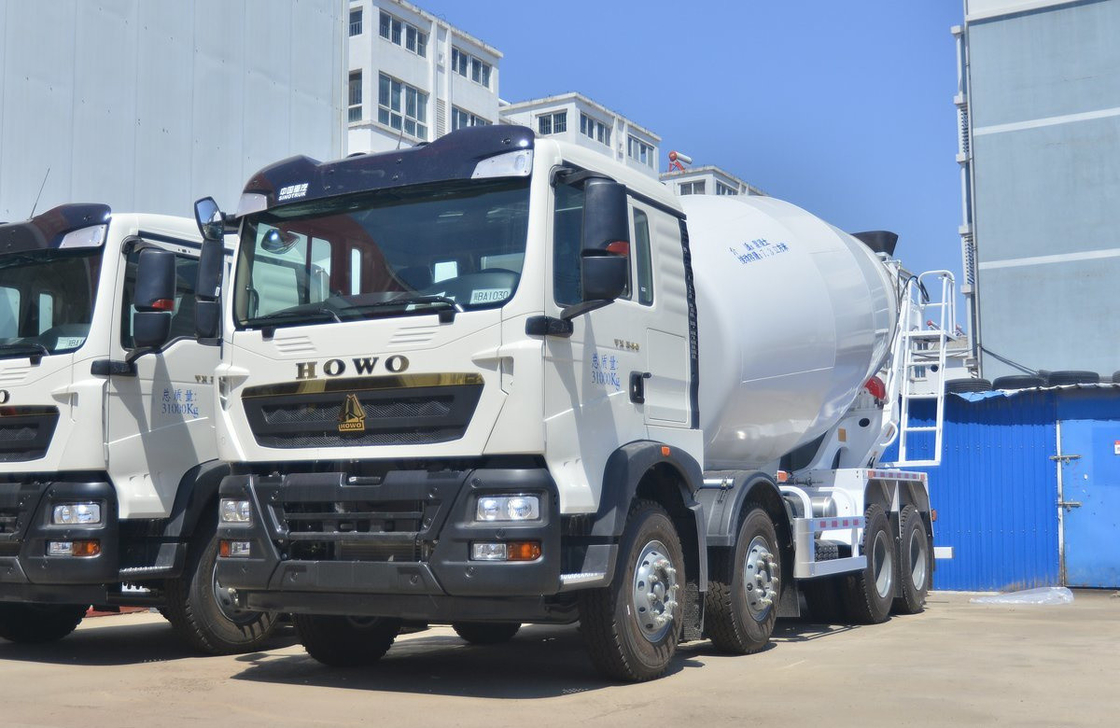

Customized Heavy Mixer Truck 8 Cubic Sinotruck Howo T7 Cement Mixer With 10-Speend Gear
Description:
chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing
ladder,air pressure water supply device. half cab(with sleeping berth), allowable 3 passengers, Four position image, multi-function steering wheel, airbag seat, cruise control, electric window regulator, electric cab lifting, air conditioner, ABS (4S/4M).
Service we can provide:
yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc. Customized Heavy Mixer Truck
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.Customized Heavy Mixer Truck
| ZZ5317 PARAMETER | |||
| Product Name | Sinotruck TRUCK | Brand | Sinotruck |
| Origin | China | Model | ZZ5317 |
| Year | 2020 | Type | SPV |
| Total Weight | 31000 (kg) | Curb Weight | 14510(kg) |
| Seats | 2 | Max speed | 80km/h |
| Type of Fuel | Diesel | Length | 10170mm |
| Weight | 2550mm | Height | 3990mm |
| Overall Dimensions(L*W*H) | 10170*2550*3990mm | Customized Heavy Mixer Truck | Customized Heavy Mixer Truck |
| ENGINE PARAMETER | |||
| Engine Model |
MC09.34-50
|
Engine Power | 250/340kw |
| Displacement | 8765ml | Emission Standard | EURO 5 |
| CHASSIS PARAMETERS | |||
| Number of Spring Pieces |
11/11/10,3/3/5,3/3/4 11/11/-,3/3/-,11/11/12 5/5/5,5/5/- |
Number of Tire | 12 |
| Tire Type | 12R22.5,11.00R20 | Approach/Depature Angle | 19/15(°) |
| F/R Overhang | 1500/2470(mm) | Front Track | 2061/2061(mm) |
| Rear Track | 1870/1870(mm) | Number of Axis | 4 |
| Axial load | 6500/6500/18000(kg) | Wheelbase | 1800+2050+1350(mm) |
